arch-motion-page (amp)

By Joey (@joeeeeey) · live demo · repo · MIT

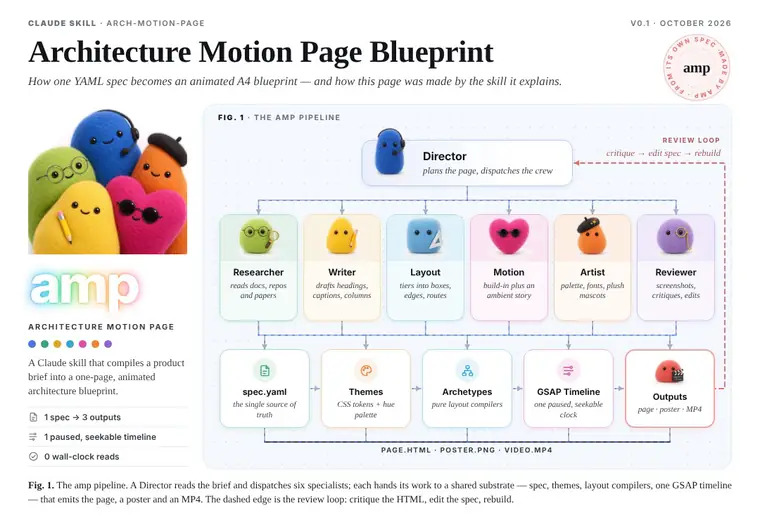

amp turns an architecture analysis into one A4 page. The page has a header, a brand column, a three-tier figure and three columns of academic-style text. It builds itself in about 3 s, then loops a heartbeat story: the root pulses, signal packets travel the edges, each worker card swells as its packet lands, and the hand-off flows into the substrate. Edges march, mascots bob and a neon gradient wordmark breathes. After the build, every frame is a usable poster. The default skin is white paper with black type (plush-academic); blueprint is the navy alternative. Pages can be English or Chinese (meta.lang: zh).

Division of labour. The agent writes only spec.yaml. Deterministic compilers own every coordinate, colour and keyframe:

spec.yaml ─▶ lib/spec.mjs (validate, budgets)
          ─▶ lib/archetypes/tiered.mjs (boxes, edges, packet routes)
          ─▶ templates/paper-a4.mjs + themes/<name> (HTML/CSS)
          ─▶ lib/motion.mjs (JSON op list) ─▶ runtime/amp-runtime.js (ONE paused GSAP timeline)
          ─▶ out/index.html  (also a valid HyperFrames composition)

Hard rules

• Never hand-edit out/. Every fix goes into the spec. Fix the compiler, theme or template only when the defect is generic.
• Keep the page deterministic:
  • No wall-clock reads.
  • No unseeded randomness.
  • No network at view time: the build copies GSAP (from npm) and the Latin fonts (vendor/fonts/) into out/, subsets CJK fonts into out/fonts/, and assets live inside the spec folder.
• Run third-party tools in containers. Font subsetting (zh pages and --single) runs pyftsubset in Docker with --network none; the CJK sources are pinned downloads, verified by sha256 and cached in ~/.cache/arch-motion-page/.
• Review at the HTML stage with scripts/review.mjs.
  • Render video only after the HTML passes review and the user approves.
  • Render only inside Docker (scripts/render.sh). Never run npx hyperframes on the host.
• Images are optional. Generate them with whatever image tool is available (an installed image-generation skill, or any model that outputs PNG with a transparent background), and keep each prompt next to its asset in assets/source/*.prompt.txt.
  • Never print API keys or image-tool config.
  • Never commit generated assets that contain anything sensitive.

Workflow

0. Setup (once): run npm install in this skill dir. It needs Node ≥ 22 and a local Chrome (override with CHROME=/path).

1. Analyse the system into three tiers, using references/design-grammar.md:

   • root: the entry point or orchestrator, exactly one node.
   • workers: 3–7 roles or services.
   • substrate/outcome: 2–6 shared stores, platforms or results. The last node is usually the outcome.

   Then pick:

   • The one story worth looping: which workers, in which order.
   • An optional feedback edge: outcome → root.

2. Write the spec.

   • Start a work dir outside the skill, e.g. /tmp/amp-<slug>/.
   • Copy examples/self-intro/spec.yaml there as a template.
   • Fill it using references/spec-schema.md. Respect the character budgets, because the build warns on every overrun. Budgets count a CJK character as width 2.
   • Language variants sit next to it as spec.<lang>.yaml (e.g. spec.zh.yaml with meta.lang: zh) and build into out-<lang>/.

3. Assets (optional):

   • Use node icon:s from the built-in set; no images needed.
   • Or generate a plush cast and a brand image:

     # any image tool: one 2048x1024 PNG character sheet, transparent background
     <image-tool> --prompt-file cast.prompt.txt --size 2048x1024 --background transparent \
       --output /tmp/amp-assets/cast.png
     uv run --with pillow --with numpy python scripts/slice_cast.py /tmp/amp-assets/cast.png \
       <workdir>/assets/mascots --grid 4x2 --names a,b,c,d,e,f,g,h --height 240


   • The prompt recipe is in examples/self-intro/assets/source/.

4. Build: node scripts/build.mjs <workdir>/spec.yaml. This writes <workdir>/out/. Pass --theme <name> to try another skin. The first zh build creates the amp-fonttools image and downloads the Noto SC fonts once; later builds take seconds.

5. Review: node scripts/review.mjs <workdir>/out. Then:

   • Read review/contact.png and the console fit report.
   • Zoom into the figure with --zoom 288,148,752,520, or into the hero with --zoom 40,148,1000,520.
   • Score against references/review-rubric.md, edit the spec, rebuild, and repeat.
   • The page is done when the fit report says OK, columns fill 88–99%, the review prints loop seam … OK, and the rubric passes.

6. Present or publish as HTML:

   • out/index.html autoplays when opened: the build plays once, then the live story loops from loopFrom (about 3.4 s) to the end. Both ends of that window are the same frame, so the page never jumps back to blank. ?once plays everything once and holds the last frame. It sits centred on a desk at 1:1 when the window is wide enough and scales down to the window width otherwise.
   • Keys: Space play/pause (at the end it resumes the loop), F fit the whole page, ← → step 1 s, Home replay from the build. prefers-reduced-motion holds the poster frame.
   • ?fit starts fitted, ?poster shows the end-of-build frame, ?t=12.5 holds any frame, ?debug outlines fit offenders, ?review is the 1:1 top-left mode the review script uses.
   • To publish, build with --single. It writes out/single/<id>[-<lang>].html with scripts, subset fonts and images inlined (about 3–4 MB for the example), so it can be sent or hosted as one file. Check it with review.mjs out --page single/<file> --present.

7. Render (approval required): scripts/render.sh <workdir>/out [--output video.mp4] [--quality high]. It runs hyperframes lint, check and render inside a container.

Commands

Command	Purpose
node scripts/build.mjs spec.yaml [--out dir] [--theme name] [--single]	Compile the page. Prints language, build-in time, loop window, op count, packets, budget warnings and loop-seam warnings. --single also writes one self-contained HTML file.
node scripts/review.mjs out [--times a,b] [--zoom x,y,w,h] [--scale 2] [--page f.html]	Frames at named events, contact.png, report.json and the loop-seam pixel diff. out-zh reviews into review-zh.
node scripts/review.mjs out --present 1440x900,820x1180,1440x900:fit	Also capture present mode (centred, scaled; :fit = whole page) as present-WxH.png.
node scripts/review.mjs out --burst 3:6:15	Frame burst plus burst.mp4, to check motion smoothness without HyperFrames.
node scripts/review.mjs out --times 0.9,1.6,3.2 --thumb 320 --dest d	Small frames for a filmstrip block (the page can show itself).
scripts/render.sh out [--check-only] [--output f.mp4] [--fps 30] [--quality looks]	HyperFrames lint, check and render in Docker.

Files

• lib/: spec loader, archetypes, motion compiler, inline markup, icons, lang.mjs (locale strings, CJK font families and CSS), fonts.mjs (pinned downloads, Docker subsetting).
• templates/paper-a4.mjs: page geometry (GEOM) and HTML.
• themes/<name>/: theme.json (hues, fonts, extends) and theme.css.
• runtime/amp-runtime.js: plan interpreter, playback modes and fit report.
• vendor/fonts/: Tinos, Inter and JetBrains Mono, all SIL OFL 1.1 (license texts alongside). GSAP 3.15 is an npm dependency, not vendored: its license does not grant redistribution.
• examples/self-intro/: amp explaining amp. This is the reference spec, and its filmstrip shows the page's own build.
• references/:
  • spec-schema.md, design-grammar.md, motion-grammar.md, review-rubric.md.
  • extending.md: new themes, archetypes and effects.

Gotchas

• Text that is too long is the most common failure.
  • Budgets: tier-1 titles ≤ 12 chars, subs ≤ 44; tier-2 titles ≤ 14, subs ≤ 34.
  • Body columns are fixed at 728 px tall. Trim prose or swap blocks instead of shrinking type.
• YAML: quote any value that contains #, : , or starts with *, &, [ or {.
• CJK prose: write each paragraph on one line (quoted). Folded >- scalars join lines with a space, which shows up as a stray gap between Chinese characters.
• zh node subtitles break only at punctuation and spaces (keep-all). Put a 、, ， or space where a two-line label should break.
• Assets must sit inside the spec folder. The build copies them into out/, so the output folder is self-contained.
• If the story timing looks uneven, check out/amp-build.json → events. Spot beats should be evenly spaced.
• render.sh gates on hyperframes check, which audits text contrast: copy needs 4.5:1 (3:1 for large text). Fix the theme colour; only decoration and logotypes may carry data-layout-ignore (the template sets it on the stamp and the wordmark).
• review.mjs clears its review dir on every run. Copy anything worth keeping (posters, preview MP4s) into a sibling share/ dir, which is gitignored for the examples.
